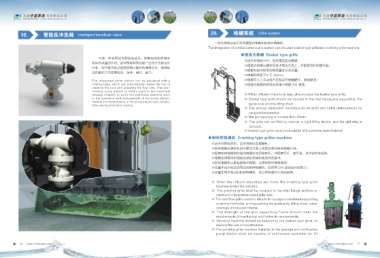

19. 智能反冲洗阀 Intelligent backflush valve 20. 格栅系统 Grille system

一体化预制泵站可采用提篮式格栅和粉碎式格栅机。
The integration of prefabricated pump station can be used basket type grilleand crushing grille machine.

●提篮式格栅 Basket type grille
中蓝一体化泵站可配旋转底座，能够自动实现清池
◎进水杂质较少时，宜采用提篮式格栅；
和调节流量的作用。这种预旋转泵站被广泛用于市政污水
◎提篮式格栅应耦合在进水管法兰面上，并配套导杆和提升链；
行业，用于解决泵站运营管理中额外的清理工作，使得泵
◎格栅和挡水板等消能装置应分开设置；
站的维护工作变得安全、简单、省时、省力。
◎格栅网间距不小于 40mm；
The integrated pump station can be equipped with a ◎格栅可人工手动或者轻型起吊装置提升，倾倒栅渣；
rotating base, which can automatically realize the role of ◎提篮式格栅的材质应采用不锈钢 304 材质。
cleaning the pool and adjusting the flow rate. This pre-
rotating pump station is widely used in the municipal
sewage industry to solve the additional cleaning work ◎ When influent impurity is less, should adopt the basket type grille;
in the operation and management of the pump station, ◎ Basket type grille should be coupled in the inlet flange,and supporting, the
making the maintenance of the pump station safe, simple,
time-saving and labor-saving. guide pole and the lifting chain
◎ The energy dissipation devices,such as grids and baftle plates,should be
equipped separately;
◎ The grid spacing is not less than 40mm
◎ The grille can be lifted by manual or light lifting device. and the grid slag is
dumped,
◎ Basket type grille material should be 304 stainless steel Material

●粉碎型格栅机 Crushing type grilles machine

◎进水杂质较多时，宜采用粉碎型格栅机；
◎粉碎格栅应耦合在进水管法兰面上或者安装在预制格栅井内；
◎配套粉碎格栅机的溢流格栅应加开检修孔，并配套导杆、提升链、进水渠和支撑架；
◎格栅支撑框架的强庋应满足机械和液压符合要求；
◎粉碎格栅机应配套提篮式格栅，以便检修时替换使用；
◎设置于污水和合流泵站的粉碎格栅机，应具备 24h 连续运行的能力；
◎设置于雨水泵站的粉碎格栅机，可以采用液位计控制启停。

◎ When the influent impurities are more, the crushing type grille
machine should be adopted;
◎ The grinding grille shall be coupled to the inlet flange surface or
installed in the prefabricated grille well;
◎ The overflow grille machine should be equipped additional supporting
crushing manholes, and supparting the guide pole, lifting chain. water
drainage and support frame;
◎ The strength of the grid supporting frame should meet the
requirements of mechanical and hydraulic requirements,
◎ Grinding machine should be supporting the basket type grille. to
replace the use of maintenance;
◎ The grinding grille machine installed in the sewage and confluence
pump station shall be capable of continuous operation for 24
hours;
