●电磁流量计的特点 Characteristics of electromagnetic flowmeter

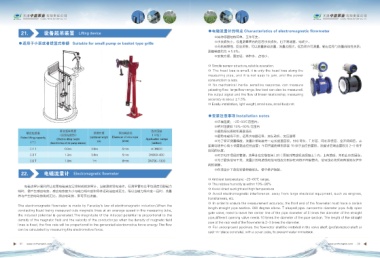

21. 设备起吊装置 Lifting device
◎其传感器结构简单，工作可靠。
●适用于小泵或者提篮式格栅 Suitable for small pump or basket type grille ◎水头损失小，仅是测量管内的沿程水头损失，且不易堵塞，电耗少。
◎无机械惯性，反应灵敏，可以测量脉动流量，流量范围大，低负荷亦可测量，输出信号与流量成线性关系；
测量精度约为 ±1.5%。
◎安装方便，重量轻，体积小，占地小。

◎ Simple sensor structure,reliable operation.
◎ The head loss is small. it is only the head loss along the
measuring pipe, and it is not easy to jam. and the power
consumption is less.
◎ No mechanical inertia. sensitive response. can measure
pulsating flow. large flow range. low load can also be measured.
the output signal and the flow of linear relationship; measuring
accuracy is about ±1.5%.
◎ Easily installation, light weight, small size, small footprint.

●安装注意事项 Installation notes

◎环境温度：-25~60℃范围内；
◎相对湿度在 10%~90% 范围内
◎避免阳光直射和高温场所
◎避免电磁场干扰，远离大电器设备，如发动机、变压器等
◎为了保证测量精度，流量计前端要有一定长度直管段，900 弯头、T 形管、同心异径管、全开闸阀后，需
要离电极中心线 5 倍管路直径的直管；不同开度的阀则需要 10 倍于直径的管段。流量计后端直管段为 2~3 倍于
直径的长度。
◎对于地下埋设的管道，流量计应安装在阀门井（预制井筒或现浇混凝土）内，上有盖板，并防止水的浸泡。
◎为了避免信号干扰，流量计的电源线和信号线应分别穿在两根不同套管内，信号线必须采用有接地保护作
用的钢管。
◎在流量计下游应安装伸缩接头，便于维护拆装。
22. 电磁流量计 Electromagnetic flowmeter

◎ Ambient temperature: -25~60℃ range,
◎ The relative humidity is within 10%~90%
电磁流量计是利用法拉第电磁感应定律制成的流量计，当被测的导电液体，在测量管内以平均速度切割磁力
◎ Avoid direct sunlight and high temperature
线时，便产生感应电势。感应电势的大小与磁力线密度和导体运动速度成正比，所以当磁力线密度一定时，流量
◎ Avoid electromagnetic interference. away from large electrical equipment, such as engines,
将与产生的电动势能成正比。测出电动势，即可算出流量。
transformers, etc.
◎ In order to ensure the measurement accuracy, the front end of the flowmeter must have a cerlain
The electromagnetic flowmeter is made by Faraday's law of electromagnetic induction,When the
length straight pipe section. 900 degree elbow. T shaped pipe. cancentric diameter pipe. fully open
conducting liquid being measured cuts magnetic lines at an average speed in the measuring tube,
gate valve, need to leave the center line of the pipe diameter of 5 times the diameter of the straight
the induced potential is generated.The magnitude of the induced potential is proportional to the
pipe,different opening valve needs 10 times the diameter of the pipe section. The length of the straight
density of the magnetic field and the velocity of the conductor,so when the density of magnetic field
pipe at the rear end of the flowmeter is 2~3 times the diameter.
lines is fixed, the flow rate will be proportional to the generated electromotive force energy.The flow
◎ For underground pipelines. the flowmeter shall be installed in the valve shaft (prefabricated shaft or
can be calculated by measuring the electromotive force.
cast-in-place concrete). with a cover plate, to prevent water immersion.
