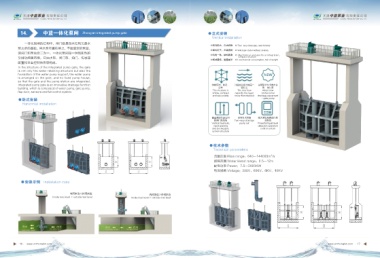

              14.           中蓝一体化泵闸                  Zhonglan integrated pump gate                                                 ●立式安装
                                                                                                                                      Vertical installation
                一体化泵闸的结构中,闸门既是挡水结构又是水
                                                                                                                                     ◎双向排水,自由切换     ◎ Two-way drainage, switch freely
            泵支承的基础,其水泵布置在闸上,不建固定的泵室,
                                                                                                                                     ◎湿式定子,无需密封     ◎ Wet type stator without sealing
            使闸门和泵站合二为一。一体化泵闸是一种创新性的
                                                                                                                                     ◎机电一体,结构紧凑     ◎ Mechanical and electrical integration,
            引排功能建筑物,它由水泵、闸门泵、拍门、传感器                                                                                                                   compact structure
                                                                                                                                     ◎耗材量低,重量减半     ◎ Low material consumption, half of weight
            配置和全套控制体系等构成。
            In the structure of the integrated pump gate, the gate
            is not only the water retaining structure but also the
            foundation of the water pump support, the water pump
            is arranged on the gate, and no fixed pump house,
            so that the gate and the pump station are integrated.
            Integrated pump gate is an innovative drainage function                                                                   结构简洁、紧凑、      河道过流能力提高一      采用新型专业排水设
            building, which is composed of water pump, gate pump,                                                                         合理            倍以上          备 - 闸门泵
                                                                                                                                      The structure is
                                                                                                                                                      The river flow
                                                                                                                                                                     Adopt new
            flap door, sensors and full control system.                                                                               simple, compact   capacity has been   professional
                                                                                                                                      and reasonable  more than doubled  drainage equipment
            ●卧式安装                                                                                                                                                    - gate pump
               Horizontal installation



                                                                                                                                      垂直液压快速启闭        双向排水泵组       强大液位检测运行控
                                                                                                                                       的闸门系统结       Two-way drainage   制系统
                                                                                                                                      Vertical hydraulic   pump set  Powerful liquid level
                                                                                                                                       rapid opening               detection operation
                                                                                                                                      and closing gate              control system
                                                                                                                                      system structure



                                                                                                                                    ●技术参数
                                                                                                                                       Technical parameters
                                                                                                                                                                           3
                                                                                                                                       流量范围 Flow range:640—144000m /h
                                                                                                                                       扬程范围 Water Head range:0.5—12m
                                                                                                                                       配电功率 Power:7.5—2000KW
                                                                                                                                       电压规格 Voltage:380V、600V、6KV、10KV


              ●安装示例   Installation case





                                  Inside river level < outside river level         Inside river level > outside river level










                                Inside river
               outside river                                       outside river  Inside river
